Ferrara Equipment

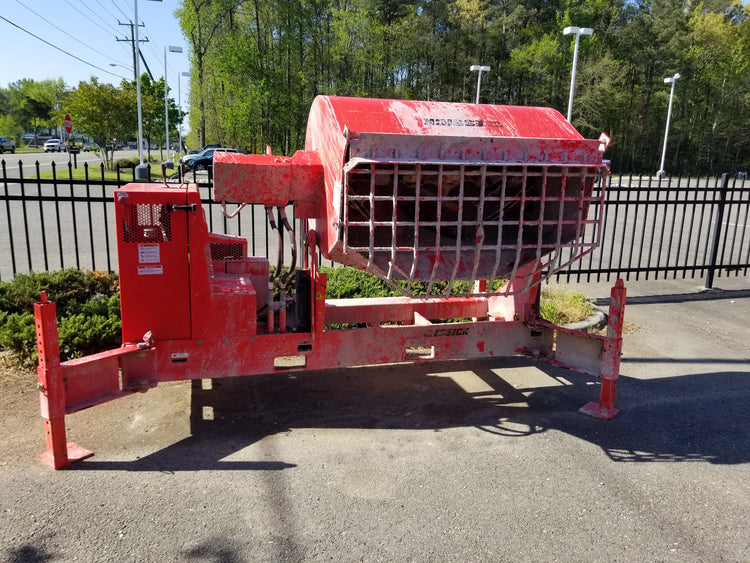

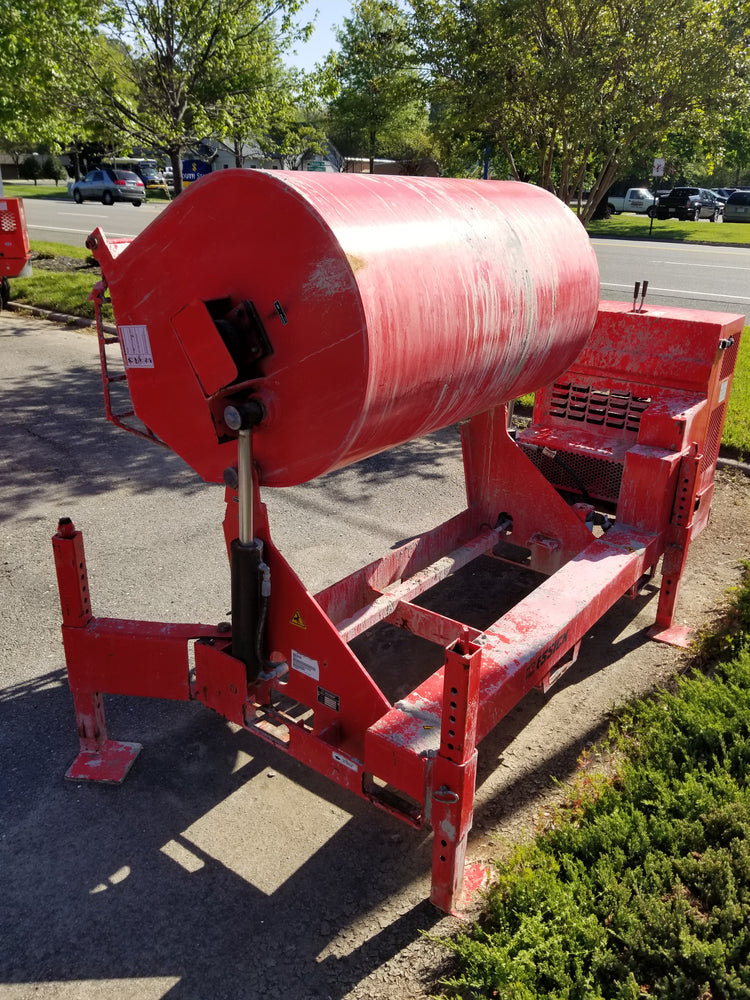

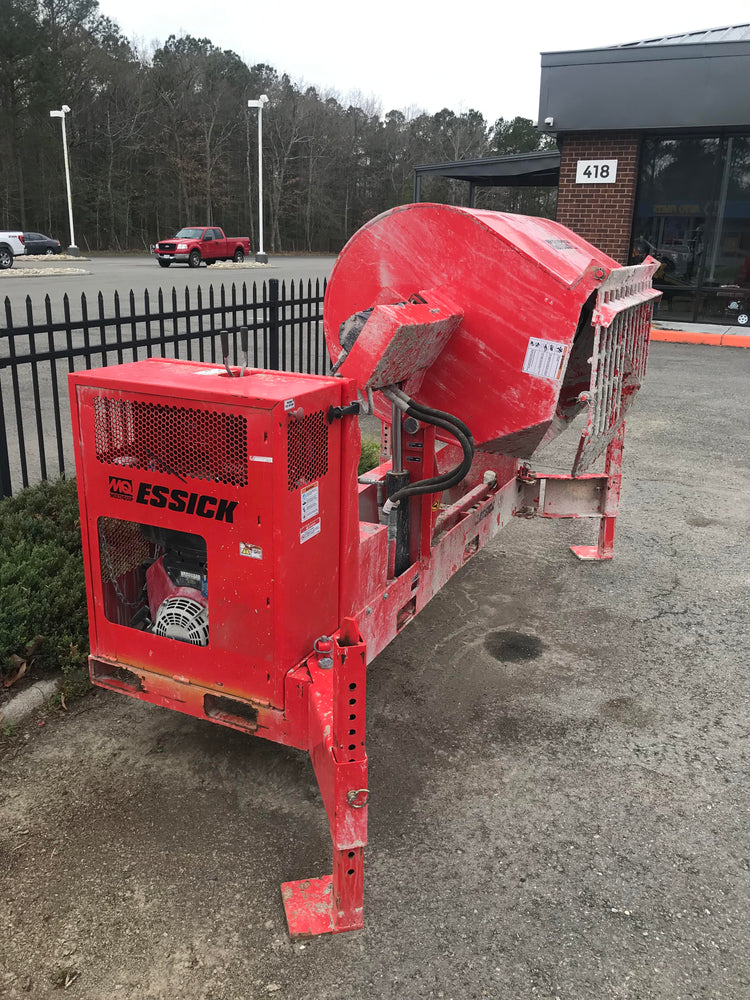

Essick Pro20 Mortar Mixer

Regular price
Call for pricing

Description

CALL JIM @ (804) 937-8137 for Details



An impressively large mixing capacity and powerful drive system sets the MQ Essick PRO20 with hydraulic dump set this mortar mixer apart from other masonry equipment.

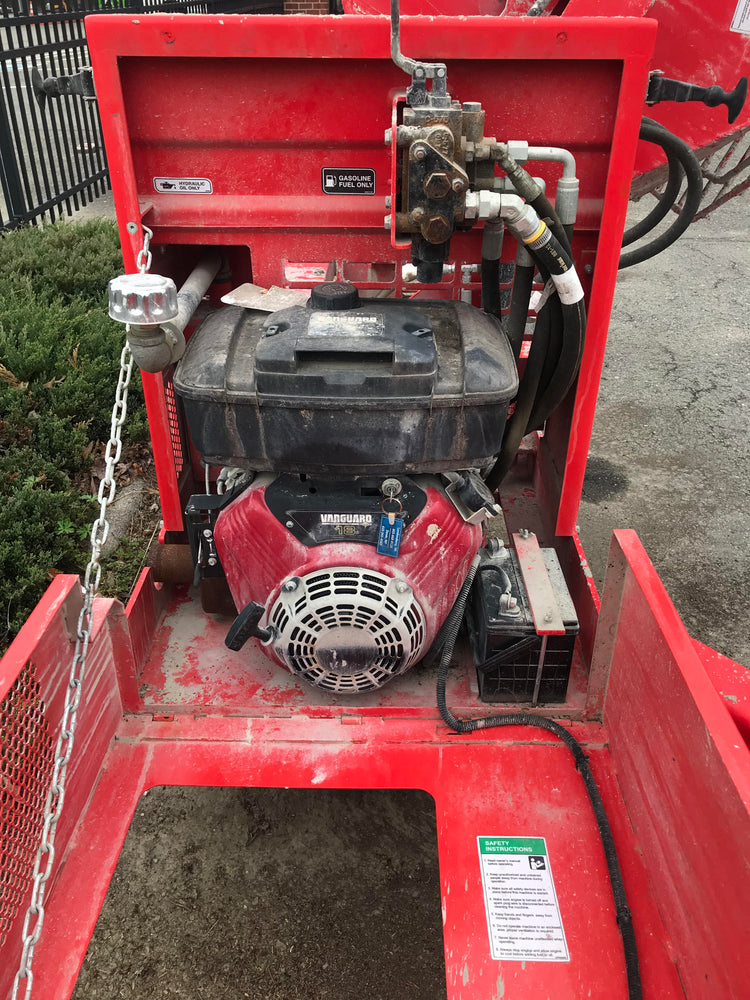

The PRO20 essick mortar mixer features a reliable 18 HP  Briggs and Stratton vanguard engine and robust hydraulic drive to handle the toughest mixes. Nothing else comes close in performance, dependability or value

  • Thick drum wrap — 1/4 in. wrap with 3/8 in. ends to resist abrasion.
  • High torque hydraulic motor with integral relief.
  • Reduced operator fatigue — over ­center dump and adjustable height (23 to 43 in) enables loading at waist level.
  • Minimizes waste — built-in spill plate directs excess material back into the tub.
  • Easy machine maneuverability — convenient access forklift pockets are approachable from any side of the mixer.
  • Readily accessible drive and dump controls are located above the engine cowling.
  • Fits in the bed of a pickup truck — 95.7 x 44.9 x 58.0 in (LxWxH) with legs retracted
Unit Specifications
Capacity 20 ft³ 566 L
Bags 6-7
Max. Aggregate Size 1 in 25.4 mm
Adjustable Drum Discharge Height 23 to 43 in.
Drive System Hydraulic
Dump Action Hydraulic
Dimensions & Weights
Shipping Dimensions 95.7 x 44.9 x 58 in
2431 x 1140 x 1473 mm
Shipping Weight 2004 lb 909 kg
Engine Specifications
Engine Make/Model Vanguard
Start Method Recoil/Electric
Engine Power 18 HP kW
Fuel Type Gasoline
